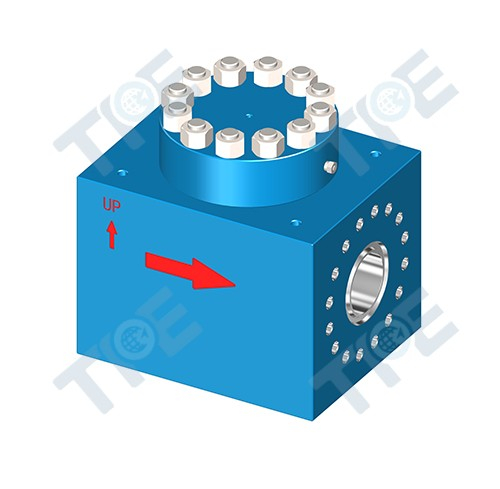

LCV Big-Bore
The big-bore frac check valve is located on the main frac iron trunk line, just before the zipper manifold. It replaces the multiple small check valve used conventionally, which are prone to leaks and washouts and lead to "Non-Productive Time" during hydraulic fracturing operations.
● Sealing at Clapper-to-seat is metal-to-metal.
● Reliable seal for the seat and clapper, and very easy to repair at well site.
● The seal between the valve body and bonnet is a pressure-energized gasket.
● Bore: 4-1/16"~7-1/16"
● Pressure Class: 10,000PSI ~20,000PSI
● Material Class: AA ~ HH
● Temperature Class: L ~ V (-50℉~ 250℉)
● Product Specification Levels: PSL 1~ PSL 3G
● Performance Requirements：PR 1, PR 2
